Polyester-imide Over Coated With Polyamide-imide

Description

Product Description

Composite coated enameled copper round wire adopts advanced double-layer insulation technology. The base layer of polyester or polyesterimide provides basic insulation and mechanical strength, while the outer layer of polyamideimide provides excellent heat and chemical resistance. Combining the advantages of both materials, it operates stably for long periods in high-temperature and harsh chemical environments, making it the preferred magnet wire for high-end industrial applications.

Advantages：

Double-layer insulation structure for more reliable performance

Class H (180℃) high temperature class

Excellent chemical corrosion resistance

Outstanding thermal shock resistance

Suitable for high-speed automatic winding

Thermal class		Wire gauge		Standard
Code	Level	mm	AWG	IEC	GB/T	NEMA	JIS
C	200	0.08-4.0	7#-40#*	60317-13	6109.2	MW35-C MW73-C
C	220	0.08-4.0	7#-40#*			MW37-C

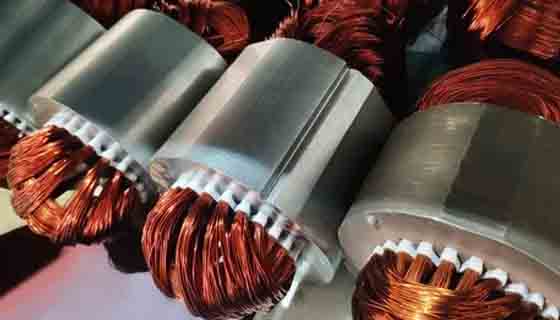

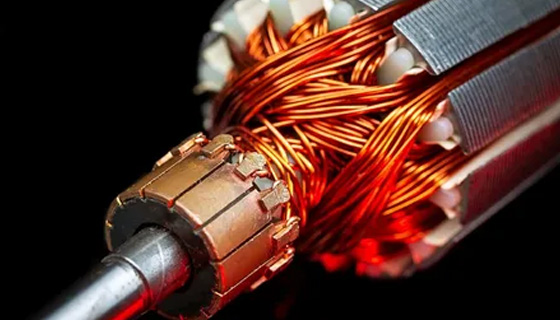

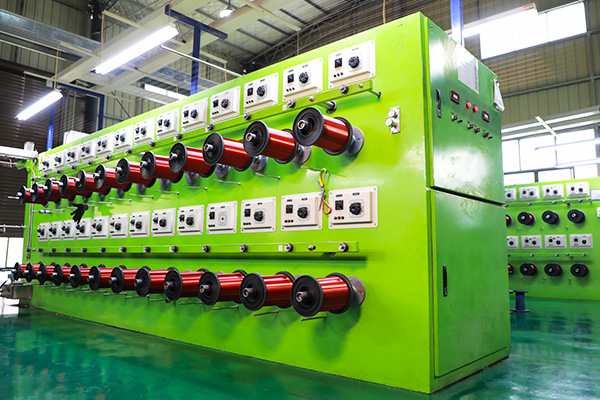

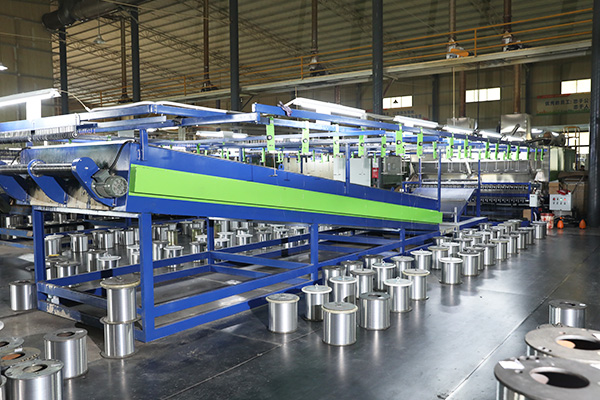

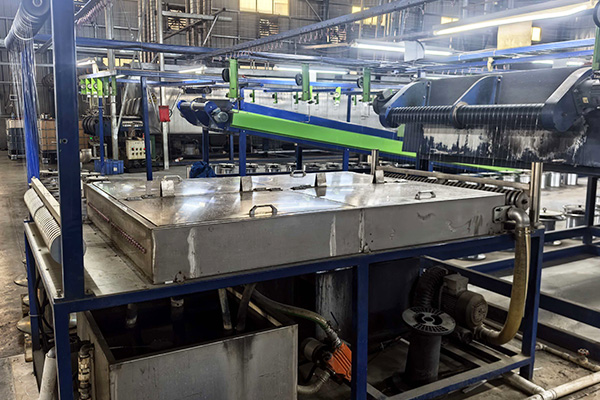

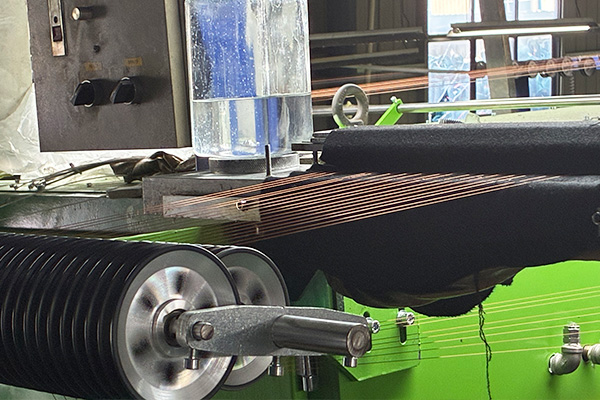

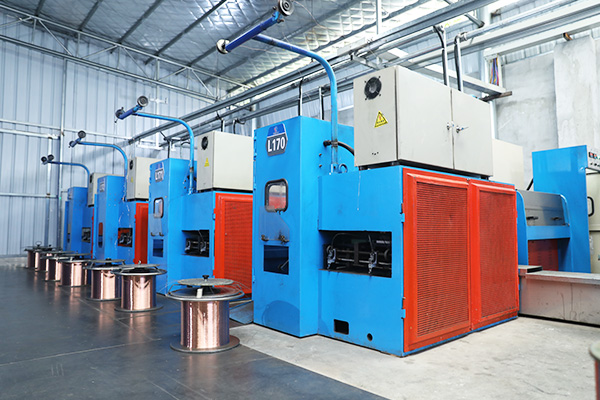

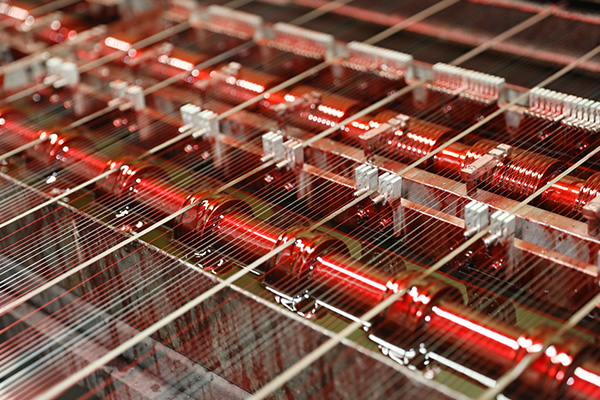

Application Fields

Performance Parameter

Conductor Diameter	Tol	Overall Diameter (mm)		Min.Insulation (mm)		Breakdown Voltage (V)		Eongation (%)	Springness (°)		ElecticalResstance (Ω/m 20)
(mm)	(mm)±	Grade 1	Grade2	Grade 1	Grade2	Grade1	Grade2	Eongation (%)	Grade1	Grade2	Maximum	Minimum
0.05		0.06	0.66	0.005	0.01	≥300	≥600	≥10			9.489	7.922
0.056		0.067	0.074	0.006	0.011	≥325	≥650	≥10			7.565	6.316
0.063	0.003	0.076	0.083	0.006	0.012	≥375	≥700	≥12			5.922	5.045
0.071	0.003	0.084	0.091	0.007	0.012	≥425	≥700	≥13			4.747	3.941
0.08	0.003	0.094	0.101	0.007	0.014	≥425	≥850	≥14	≤70	≤80	3.703	3.133
0.09	0.003	0.105	0.113	0.008	0.015	≥500	2900	≥15	≤67	≤77	2.9	2.495
0.1	0.003	0.117	0.125	0.008	0.016	≥500	≥950	≥16	≤64	≤73	2.333	2.034
0.112	0.003	0.13	0.139	0.009	0.017	≥1300	22700	≥17	≤64	≤73	1.848	1.632
0.125	0.003	0.144	0.154	0.01	0.019	≥1500	≥2800	≥17	≤62	≤70	1.475	1.317
0.14	0.003	0.16	0.171	0.011	0.021	≥1600	≥3000	≥18	≤59	≤67	1.17	1.055
0.16	0.003	0.182	0.194	0.012	0.023	≥1700	≥3200	≥19	≤59	≤67	0.8906	0.8122
0.18	0.003	0.204	0.217	0.013	0.025	≥1700	≥3300	≥20	≤57	≤65	0.7007	0.6444
0.2	0.003	0.226	0.239	0.014	0.027	≥1800	≥3500	≥21	≤54	≤62	0.5657	0.5237
0.224	0.003	0.252	0.266	0.015	0.029	≥1900	≥3700	≥21	≤51	≤59	0.4495	0.4188
0.25	0.004	0.281	0.297	0.017	0.032	≥2100	≥3900	≥22	≤49	≤56	0.3628	0.3345
0.28	0.004	0.312	0.329	0.018	0.033	≥2200	≥4000	≥22	≤47	≤53	0.2882	0.2676
0.315	0.004	0.349	0.367	0.019	0.035	≥2200	≥4100	≥23	≤50	≤55	0.227	0.2121
0.355	0.004	0.392	0.411	0.02	0.038	≥2300	≥4300	≥23	≤48	≤53	0.1782	0.1674
0.4	0.005	0.439	0.459	0.021	0.04	≥2300	≥4400	≥24	≤45	≤50	0.1407	0.1316
0.45	0.005	0.491	0.513	0.022	0.042	≥2300	≥4400	≥25	≤44	S48	0.1109	0.1042
0.5	0.005	0.544	0.566	0.024	0.045	≥2400	≥4600	≥25	≤43	≤47	0.08959	0.08462
0.56	0.006	0.606	0.63	0.025	0.047	≥2500	≥4600	≥26	≤41	≤44	0.07153	0.06736
0.63	0.006	0.679	0.704	0.027	0.05	≥2600	≥4800	≥27	≤46	≤50	0.05638	0.05335
0.71	0.007	0.762	0.789	0.028	0.053	≥2600	≥4800	≥28	≤44	≤47	0.04442	0.04198
0.8	0.008	0.855	0.884	0.03	0.056	≥2600	≥4900	≥28	≤41	≤43	0.035	0.03305
0.9	0.009	0.959	0.989	0.032	0.06	≥2700	≥5000	≥29	≤45	≤48	0.02765	0.02612
1	0.01	1.062	1.094	0.034	0.063	≥2700	≥5000	≥30	≤42	≤45	0.0224	0.02116
1.12	0.011	1.184	1.217	0.034	0.065	≥2700	≥5000	≥30	≤39	≤41	0.01785	0.01687
1.25	0.012	1.316	1.349	0.035	0.067	≥2700	≥5000	≥31	≤35	≤37	0.01435	0.01353
1.4	0.014	1.468	1.502	0.036	0.069	≥2700	≥5000	≥32	≤32	≤34	0.01143	0.01079
1.6	0.016	1.67	1.706	0.038	0.071	≥2700	≥5000	≥32	≤28	≤30	0.008749	0.00826
1.8	0.018	1.872	1.909	0.039	0.073	≥2700	≥5000	≥32	≤5	≤5	0.006913	0.006529
2	0.02	2.074	2.112	0.04	0.075	≥2700	≥5000	≥33	≤5	≤5	0.0056	0.005289
2.24	0.022	2.316	2.355	0.041	0.077	≥2700	≥5000	≥33	≤5	≤5	0.004465	0.004218
2.5	0.025	2.578	2.618	0.042	0.079	≥2700	≥5000	≥33	≤5	≤5	0.003584	0.003385
2.8	0.028	2.88	2.922	0.043	0.081	≥1300	≥2500	≥34	≤5	≤5	0.00319	0.002698
3.15	0.032	3.233	3.276	0.045	0.084	≥1300	≥2500	≥34	≤5	≤5	0.002258	0.002131
3.55	0.036	3.635	3.679	0.046	0.086	≥1300	≥2500	≥35	≤5	≤5
4	0.04	4.088	4.133	0.047	0.089	≥1300	≥2500	≥35	≤5	≤5
4.5	0.045	4.591	4.637	0.049	0.092	≥1300	≥2500	≥36	≤5	≤5
5	0.05	5.093	5.141	0.05	0.094	≥1300	≥2500	≥36	≤5	≤5
