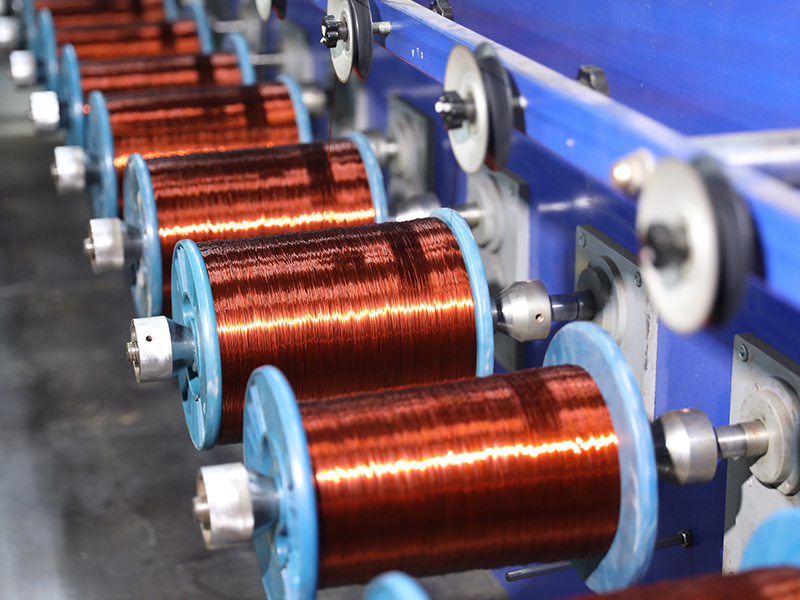

Polyester Enamelled Round Copper-clad Aluminum Wiree

Description

Product Description

■ Excellent abrasion and solvent resistance,with enamel-freedirect solderability and low high-frequency loss

■ Suitable for Class F(155℃)and Class H(180℃ high-frequency transformersrelays,micromotors,communication equipmentcoils and precision electronic components

Thermal class		Material	Enamel type	Wire gauge		Standard
Code	Level	Material	Enamel type	mm	AWG	IEC	GB/T	NEMA	JIS
B	130	CCA	PEW	0.1-6.0mm	38~3	60317	6109.7	MW1000	C3202
F	155		PEW			60317	6109.7	MW1000	C3202
H	180		EIW			60317	6109.5	MW1000	C3202
C	220		El/AIW			60317	6109.11	MW1000	C3202

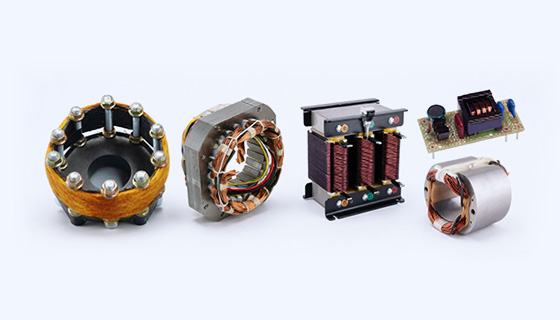

Application Fields

Performance Parameter

Conductor		Minimum Insulation (mm)		Maximum exernal dnameter (mm)		Ω / m 2 0 ℃		Breakdown Voltage( ≥ V )				Elongation ≥%	Sprin giness	Continuity of insularion (Hole/30m)
Nominal diameter (mm)	Tolerance (mm)±	Minimum Insulation (mm)		Maximum exernal dnameter (mm)		min	max	Room temperature		Elevated temperature				Continuity of insularion (Hole/30m)
Nominal diameter (mm)	Tolerance (mm)±	Level 1	Level 2	Level 1	Level 2			Level 1	Level 2	Level 1	Level 2			Level 1	Level 2
0.1	0.003	0.014	0.018	0.117	0.123	3.1684	3.6121	500	950	——	——	16	≤73	≤25	≤5
0.112	0.003	0.014	0.019	0.129	0.135	2.54167	2.86776	1300	2700	1000	2000	17	≤73	≤25	≤5
0.125	0.003	0.016	0.021	0.144	0.151	2.05161	2.28916	1500	2800	1100	2100	17	≤70	≤25	≤5
0.14	0.003	0.016	0.021	0.159	0.166	1.64377	1.81533	1600	3000	1200	2300	18	≤67	≤25	≤5
0.16	0.003	0.017	0.023	0.181	0.188	1.26514	1.38228	1700	3200	1300	2400	19	≤67	≤25	≤5
0.18	0.003	0.018	0.025	0.203	0.21	1.00372	1.08755	1700	3300	1300	2500	20	≤65	≤25	≤5
0.2	0.003	0.02	0.027	0.224	0.232	0.81568	0.87794	1800	3500	1400	2600	21	≤62	≤25	≤5
0.224	0.004	0.024	0.032	0.252	0.262	0.64661	0.70396	1900	3700	1500	2800	21	≤59	≤25	≤5
0.25	0.004	0.025	0.034	0.279	0.29	0.52101	0.56302	2100	3900	1600	2900	22	≤56	≤25	≤5
0.28	0.004	0.026	0.034	0.31	0.32	0.41675	0.44728	2200	4000	1700	3000	22	≤53	≤25	≤5
0.315	0.004	0.028	0.039	0.349	0.36	0.33032	0.35227	2200	4100	1700	3100	23	≤55	≤25	≤5
0.355	0.004	0.029	0.041	0.39	0.403	0.26081	0.27656	2300	4300	1700	3200	23	≤53	≤25	≤5
0.4	0.004	0.029	0.041	0.435	0.448	0.20595	0.21727	2300	4400	1700	3300	24	≤50	≤25	≤5
0.45	0.005	0.031	0.043	0.487	0.5	0.16236	0.17206	2300	4400	1700	3300	25	≤48	≤23	≤5
0.5	0.005	0.034	0.046	0.54	0.553	0.1318	0.13905	2400	4600	1800	3500	25	≤47	≤25	≤5
0.56	0.006	0.035	0.048	0.601	0.615	0.10493	0.11101	2500	4600	1900	3500	26	≤44	≤25	≤5
0.63	0.006	0.037	0.051	0.674	0.689	0.0831	0.0875	2600	4800	2000	3600	27	≤50	≤25	≤5
0.71	0.007	0.038	0.054	0.756	0.772	0.06538	0.06894	2600	4800	2000	3600	28	≤47	≤25	≤5
0.8	0.008	0.04	0.057	0.848	0.866	0.05149	0.05432	2600	4900	2000	3700	28	≤43	≤25	≤5
0.9	0.009	0.042	0.061	0.95	0.97	0.04068	0.04292	2700	5000	2000	3800	29	≤48	≤25	≤5
1	0.01	0.045	0.064	1.055	1.073	0.03295	0.03476	2700	5000	2000	3800	30	≤45	≤25	≤5
1.2	0.011	0.047	0.068	1.257	1.278	0.02292	0.0241	2800	5000	2000	3800	30	≤41	≤25	≤5
1.25	0.013	0.047	0.068	1.297	1.328	0.02107	0.02227	2800	5000	2000	3800	31	≤37	≤25	≤5
1.4	0.014	0.048	0.07	1.458	1.48	0.01681	0.01774	2800	5000	2000	3800	32	≤34	≤25	≤5
1.6	0.016	0.05	0.072	1.66	1.685	0.01287	0.01358	2900	5000	2000	3800	32	≤0	≤25	≤5
1.8	0.018	0.052	0.074	1.862	1.888	0.01017	0.01073	2900	5000	2000	3800	32	≤5	——	——
2	0.02	0.054	0.076	2.064	2.09	0.00824	0.00869	3000	5000	2000	3800	33	≤5	——	——
2.24	0.022	0.055	0.078	2.305	2.333	0.00657	0.00693	3000	5000	2000	3800	33	≤5	——	——
2.5	0.025	0.056	0.08	2.566	2.595	0.00527	0.00556	3000	5000	2000	3800	33	≤5	——	——
2.8	0.028	0.057	0.082	2.867	2.897	0.0042	0.00443	1300	2500	1000	1900	34	≤5	——	——
